Quick-Turn PCB Assembly Manufacturer for Rapid Prototyping

pcb assembly manufacturer

pcb assembly services

SMT assembly/PCBA manufacturing one-stop service, high-quality PCBA manufacturer with short lead times.

Learn More Contact Us

pcb assembly services

High quality price, excellent service, precise delivery time, 12 million points/day plug-in soldering 500000 points/day

Major

36 Siemens SMT placement lines, high-quality line configuration for small/medium/large volume production.

convenient

Component supply, BOM material procurement, own PCB factory, one-stop service

service

Stencil printing services, DIP component insertion, customer-supplied materials processing, and dedicated one-on-one service.

no threshold

Orders accepted for single pieces; suitable for surface mount components and through-hole components, meeting diverse customer requirements.

SMT surface mount/ through-hole soldering

Seven mass production lines and ten prototyping lines ensure product quality and timely delivery.

Surface mount capacity: 12 million points per day Daily shipment: 500-600 models

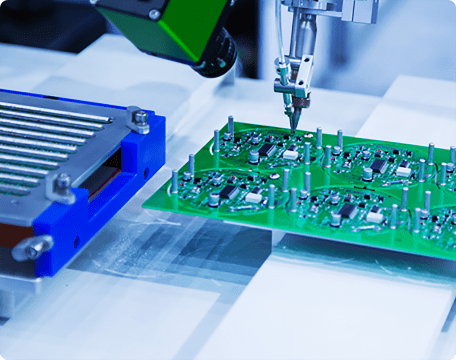

SMT surface mounting

SMT Surface Mount

Innovative precision surface mounting process Cutting-edge surface mount technology State-of-the-art micro-assembly solutions

Post-soldering capacity: 500,000 points per day; capable of soldering irregularly shaped components.

Plug-in/Post-soldering

Precise welding process Intelligent operating system High-efficiency integrated workflow

The process of assembling and testing components or finished products during the manufacturing process.

Assembly and Testing

Test the PCBA's working status under various conditions, and identify and resolve hardware or software problems.

Production process

Nine layers of quality control ensure the production of high-quality products.

ProductionStarting with every single detail.

Layout Options

Production equipment

4 units of 10-zone reflow soldering machines, 25 Yamaha pick-and-place machines, 2 wave soldering lines, conformal coating spray line, automatic printing machine, X-ray inspection, and AOI inspection.

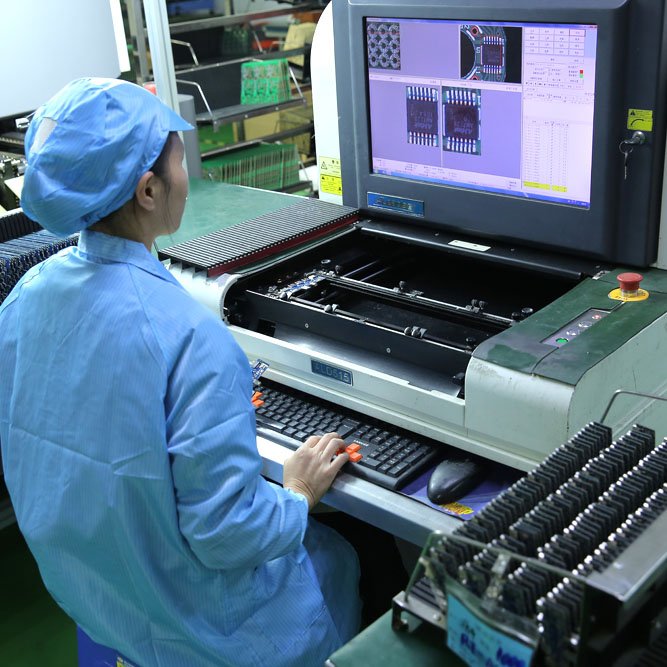

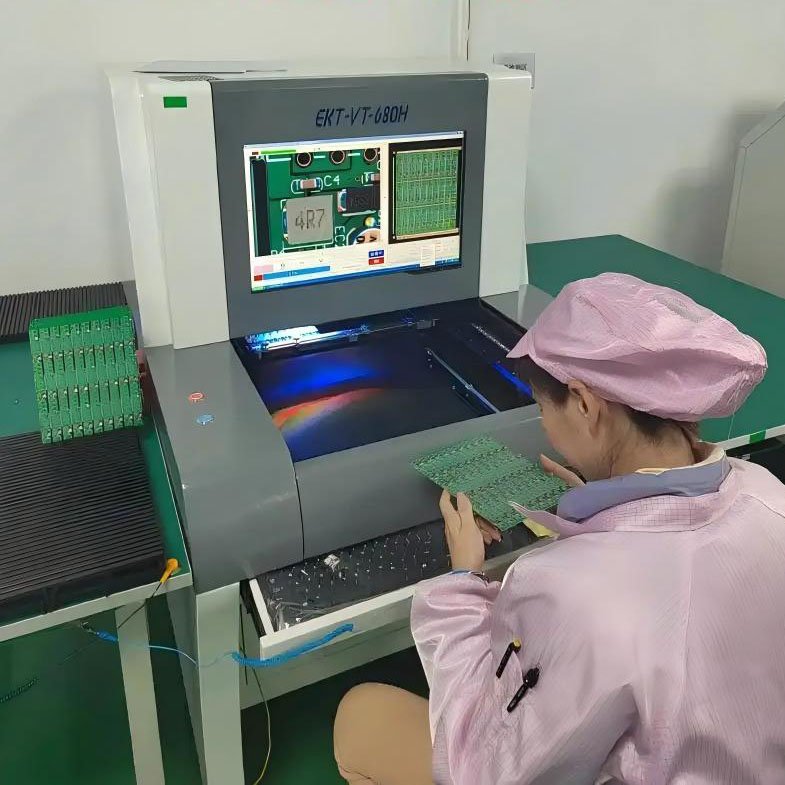

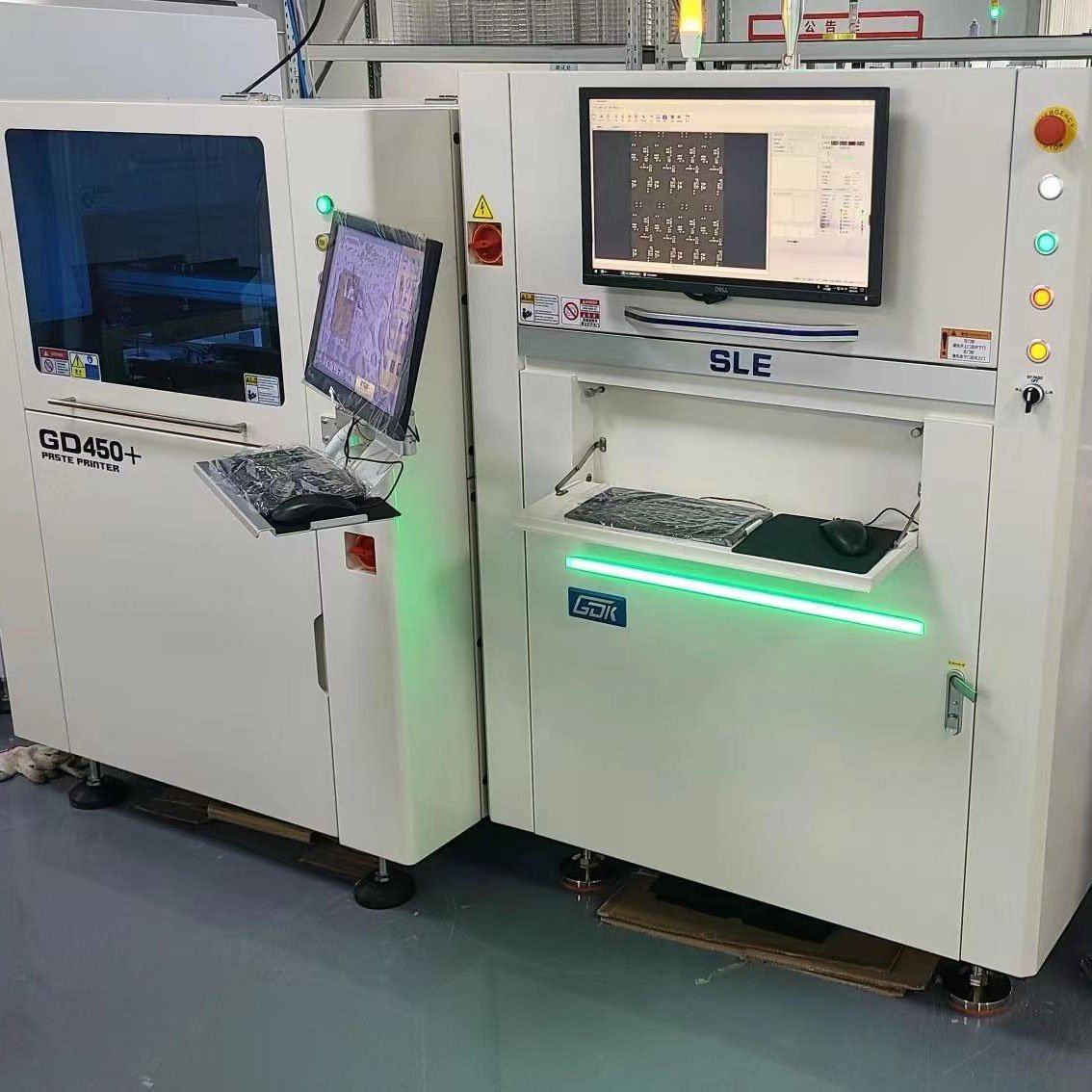

Fully automatic printing machine Send inquiry SPI inspection machine Send inquiry Yamaha pick-and-place machine Send inquiry Ten-zone reflow soldering Send inquiry AOI detector Send inquiry wave soldering Send inquiry First article inspection instrument Send inquiry X-ray detector Send inquiry

PCB Assembly service

Process capability

Small panel size: 45mm x 45mm (smaller sizes require panel assembly)
Large panel size: 400mm x 1200mm

Daily Production Capacity:

PCBA SMT (Surface Mount Technology): 12 million points/day Through-hole component insertion and soldering: 500,000 points/day

Minimum order quantity:

1 set

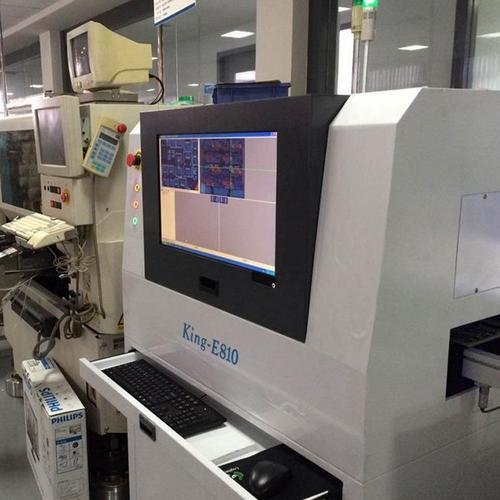

AOI Inspection Capabilities:

Standard: Minimum chip size: 0201 IC pitch: 0.3mm Extreme: Minimum chip size: 01005 IC pitch: 0.3mm

Workshop dust-free level:

Class 100,000

Plate thickness:

Not exceeding 3mm (no thickness limit for samples)

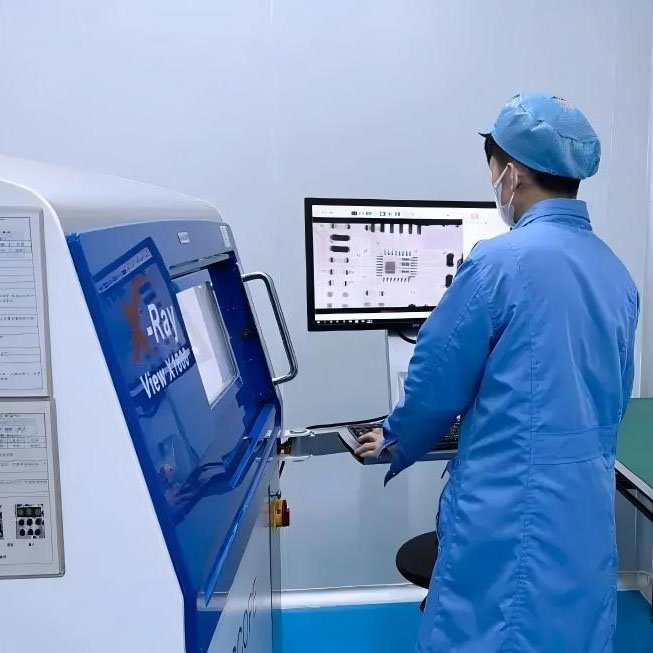

X-ray inspection capabilities

PCBA solder joint inspection (Inspection of components such as BGA, CSP, and POP)

PCBA Soldering Types:

Surface Mount Technology (SMT) Through-Hole Technology (DIP)

Smallest components

Standard: 0201 Extreme: 01005

Applicable PCB board types:

Rigid PCB (FR-4, metal substrate) Flexible PCB (FPC) Rigid-flex PCB Metal substrate

Daily Production Capacity:

PCBA SMT (Surface Mount Technology): 12 million points/day Through-hole component insertion and soldering: 500,000 points/day

Minimum component spacing:

Standard: 0.3 mm Limit: 0.2 mm

Component Services

Complete material sourcing Partial material sourcing Manufacturing services only

User Guidelines

BOM (Required): A detailed and accurate BOM list, with any changes noted on the BOM.
Gerber file (required): If panelized stencils are required, please provide the panelization file;
PCB files: If the customer is unable to export the coordinate files, reference numerals, or Gerber files, PCB files can also be provided.
Component reference diagram and coordinate files;
Sample: For production reference; available upon request.

The fee for custom-made steel mesh starts at $25 (37cm*47cm); other sizes require separate pricing.
If you require a modular stencil, please provide the modularization file. The price will be recalculated based on the different number of points.
Customers will only retain the stencil for 3 months. After 3 months, our company will handle it itself. If you want the stencil returned, you must confirm this when placing the order.
To ensure the quality of our customers' products, we are not currently accepting external steel mesh.

Customers provide their own materials. For consumable materials (samples: 15 samples of resistors and capacitors are required; for bulk orders, 1% spare parts are required), please provide spare parts.
If a small amount of materials are not available and welding is not required at the moment, please list the details. If there are any special requirements or precautions, please explain them in advance.
For surface mount resistors and capacitors procured on your behalf, you must provide the complete model number (package precision, voltage, etc.), and the resistors and capacitors provided must be of the "Samsung" brand (if the customer wants to specify a brand, they must make a special statement).
